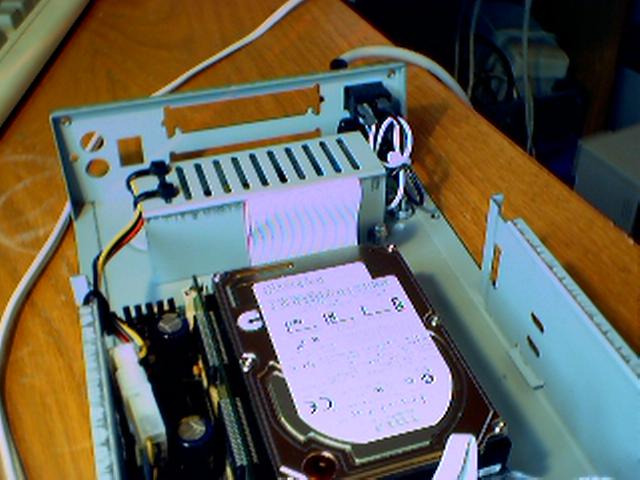

Complete Unit:

This is a external SCSI case with switched mode supply. All the SCSI connectors and bcd switch have been removed.

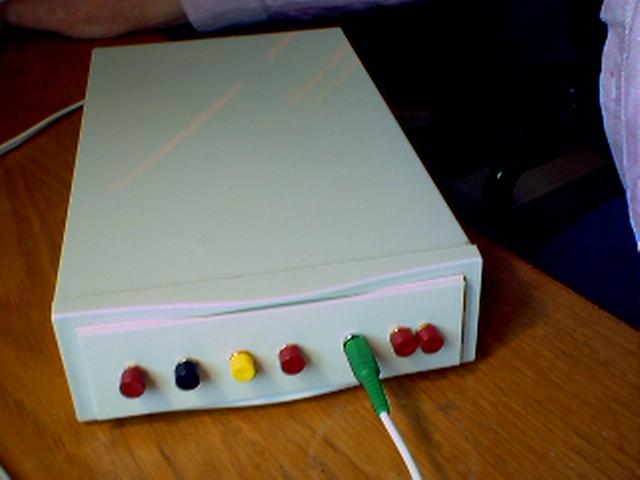

Front Panel:

The front panel is a plastic blank used in 5.25 bays. Switches are from the 'junk box' are from Arrow (UK) Cables are again from the 'junk box'.

Switched Mode Supply:

Very small unit. Just using the 12v line. Both supplies run just above cool.
