This assignment requires you to integrate JavaScript code with a number of HTML pages and server-side scripts. The problems are designed to give you some hands on experience in areas which JavaScript is known for:
Form Validation
HTML & CSS Manipulation
Text Parsing (Regular Expressions, Splitting Strings, Etc...)
Asynchronous JavaScript and XML (Ajax)
JavaScript Object Notation (JSON)
Cookies
JavaScript Dialogs
Some guidelines for the problems:
I have provided various resources (HTML, CSS, JS, Server-Side Scripts, etc...) for each of the three problems.
You are to solve the problems using only JavaScript that is written by you, or obtained from course notes. In particular, you may not use any libraries like jQuery. You are permitted to use the leaflet.js library on the last problem.
Since your projects will need to be graded from within a web
browser, a common browser needs to be specified as the target
environment. For this assignment, your project will be tested
the latest stable release
of Google Chrome.
Setup Script
This section describes the process in order to setup your account to
work on the JavaScript (and next) assignment.
You are not permitted to work on these problems in a publicly
visible area (e.g. under your www directory on GL). However, in
order to get the problems to work correctly, it needs to be
viewed in a browser from a location
on http://www.swe.umbc.edu/.
The is especially true for the last 2 problems which are making
Ajax requests.
If you haven't used the Student Web Enviroment (SWE) before, or in a while, you will need to activate it by running the following from the command line
After you have done that, you will need to run the following script to setup from your GL account to set things up for this and the next assignment.
/afs/umbc.edu/users/b/w/bwilk1/pub/setup433

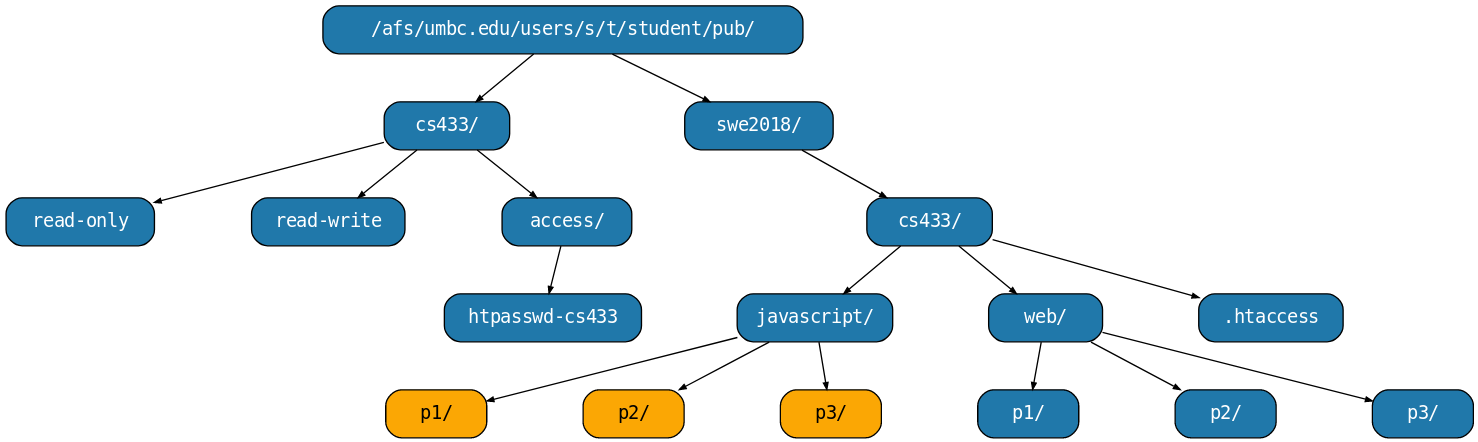

Directory Layout
Let me give a brief overview as to what some of the relevant directories and files are for...
/home/bubba1/ — This is the root of your GL account (i.e. your home directory).
/home/bubba1/swe2018/ — Anything put in this directory can be viewed on the swe webserver. For example if you put a
file called foo.png in your swe2018 directory, then you could access it online at http://swe.umbc.edu/~bubba1/foo.png.
/home/bubba1/swe2018/cs433/ — This is the sub-directory created for you to put all of your assignments under.
/home/bubba1/swe2018/cs433/javascript/ — This directory houses 3 subdirectories called p1,
p2, and p3 for each of the 3 problems in this assignment.
File & Directory Permissions
There are some additional files & directories created by this script
— do not delete, rename or re-chmod any of them.
No course-related code be placed outside of the p1,
p2 or p3 directories. Doing so will
be treated as a violation of academic integrity and will be dealt with
accordingly.
You must adhere to the following rules regarding
permissions of any file & directories you create
under your p1, p2 or p3
directories. You should not change the permissions of any
existing files or directories created by the setup scripts or
the provided copy commands.
Files you might create such as CSS, JavaScript, images, etc. must be set with
permissions rw----r--. You will need to use the
chmod command to set these permissions once you create a file.
If you create any directories they must be set with
permissions rwx---r-x. Again, you will need to
use the chmod command.
1. Wack-a-Mole (35 Points)
Task
For this assignment you will implement the game of Whack-a-Mole
using JavaScript.

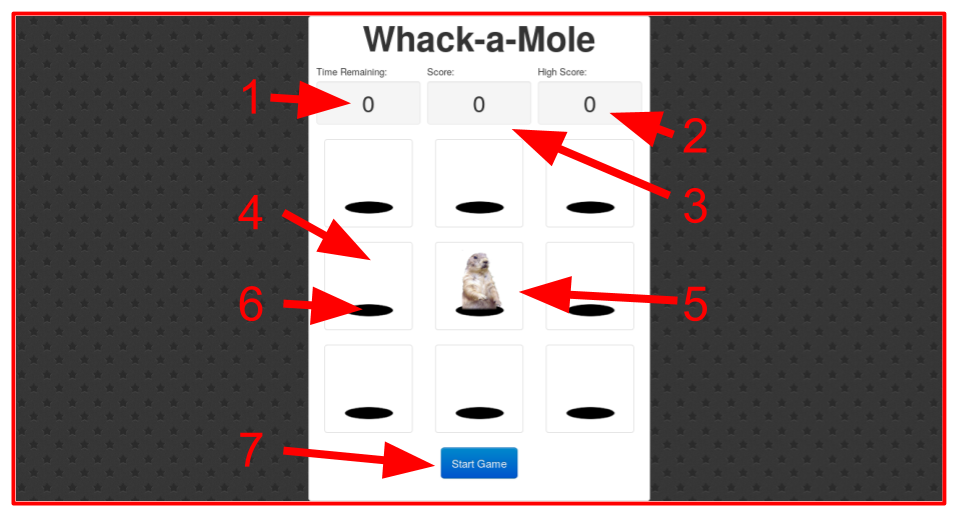

Whack-a-Mole Figure 1 — Page components
The "Time Remaining" box shows the amount of time left in the current game - it ticks by the second.
The "High Score" box shows the highest score achieved so far.
The "Score" box show the number of moles hit this game.
The main board consists of a 3x3 grid of tiles which can be clicked.
Moles will randomly pop-up at a given location for a small amount of time.
Usually the mole is down (as shown by an empty hole).
Last is the "New Game" button. This resets the time remaining, the score and resets game play
Behavior
When the page initially loads it should look like as shown in Figure 2.
This is pretty much what you get with the provided HTML document.

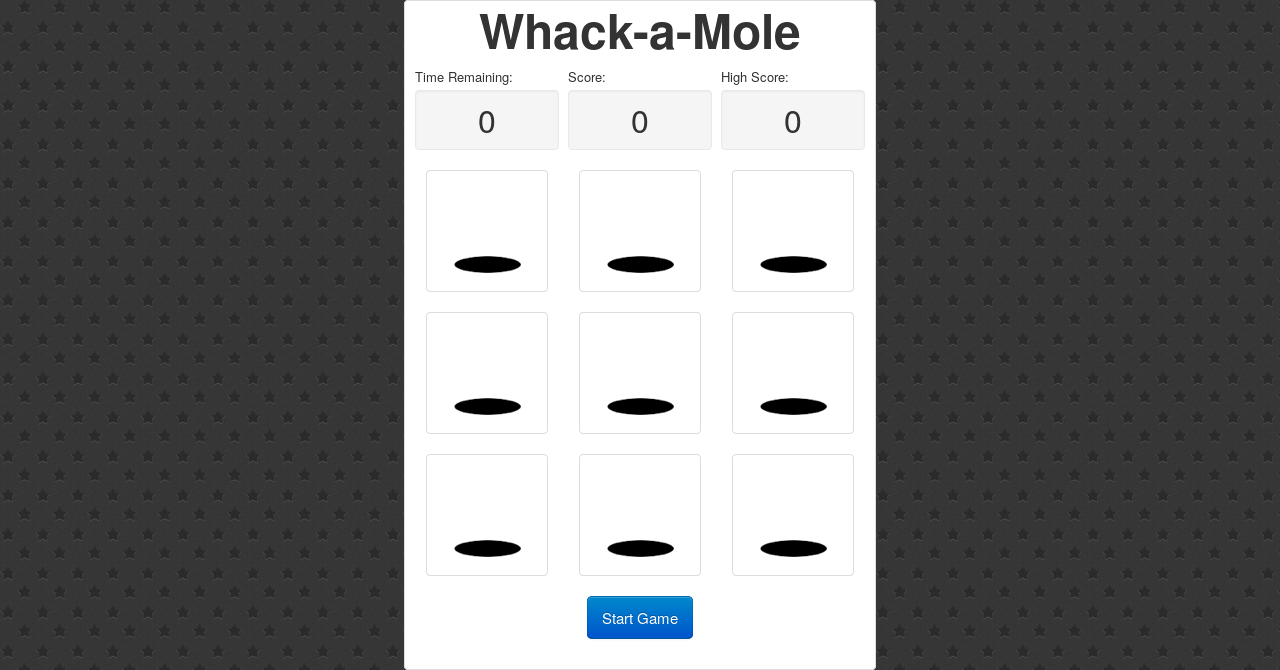

Whack-a-Mole Figure 2 — Whack-a-Mole as initially loaded
Once the "Start Game" button is clicked the time remaining is initialized to 30 seconds and the
score is reset to zero. Every second a mole pops up at a random location on the grid. The mole
should remain up for a short time (3/4 of a second seemed to work well for me) and then it should
disappear.

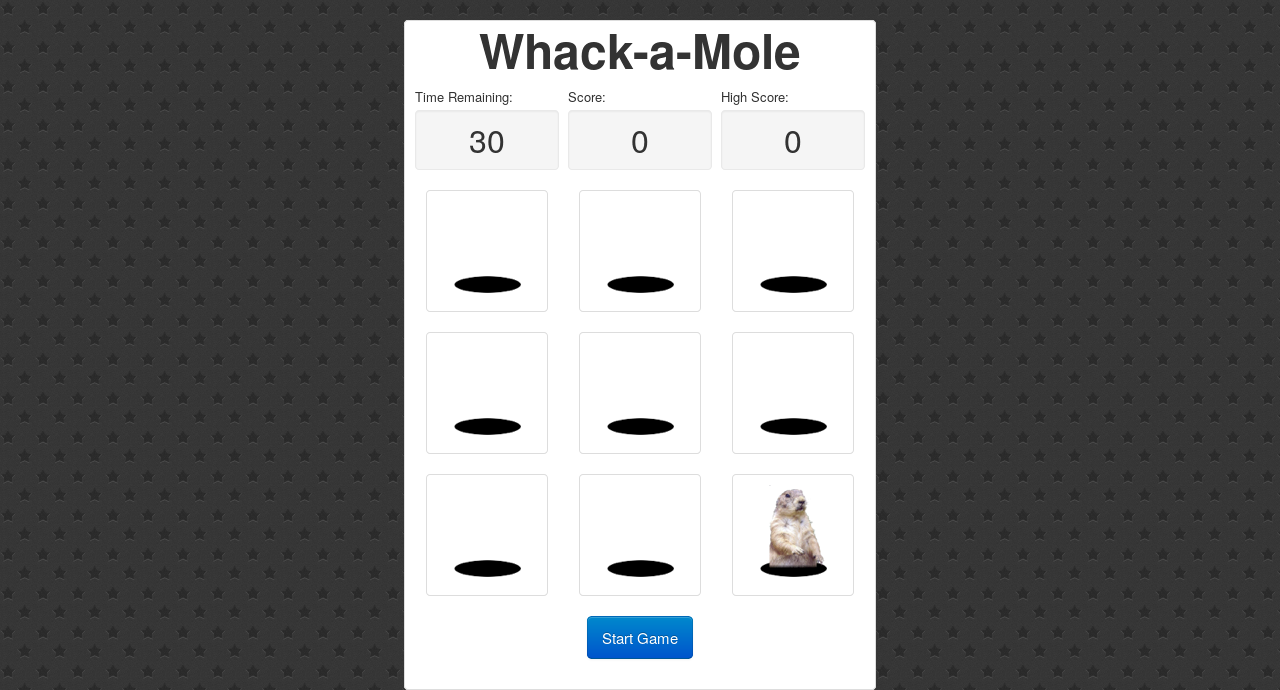

Whack-a-Mole Figure 3 — Whack-a-Mole starting a new game
If a mole is clicked while it was up, the image should immediately switch back to the hole and
the user's score should be incremented and displayed in the score box. Be sure that the user can
only gain 1 point each time a mole pops up (user should not be able to double click mole and get 2 points).
Clicking on a hole during game play should have no effect.

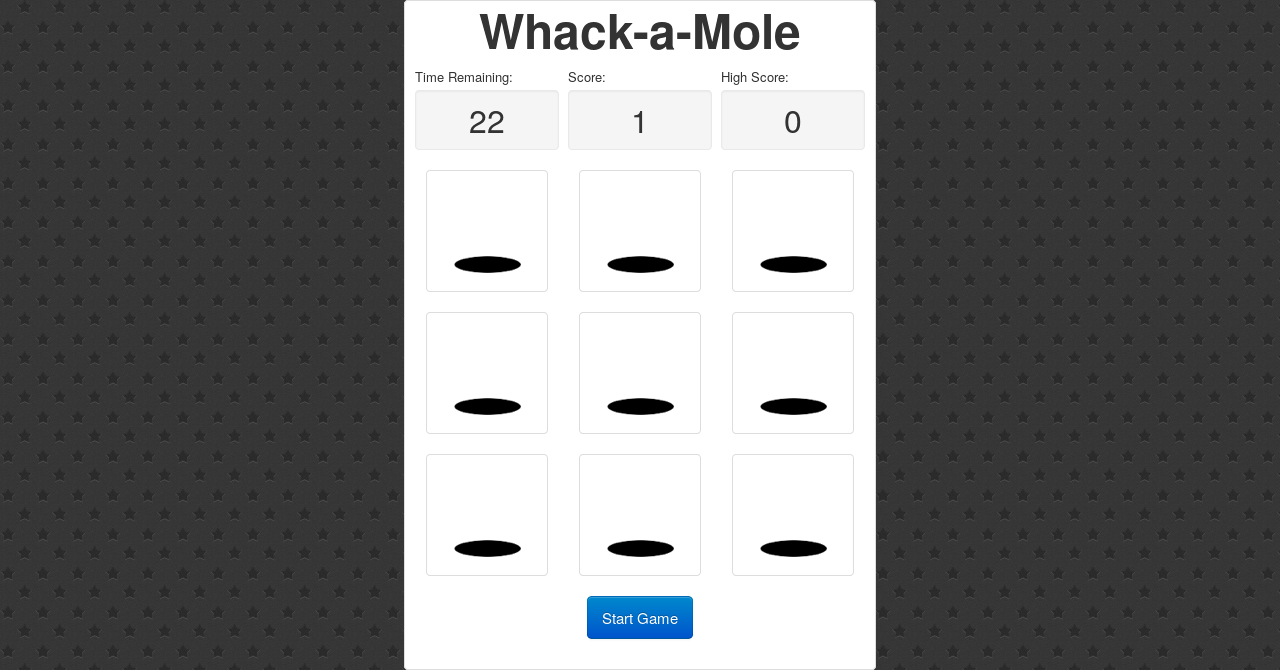

Whack-a-Mole Figure 4 — Whack-a-Mole once clicking on a mole
Once the game is over the random popping up of moles should be immediately stopped. Also, the
time left should be updated to state that the game is over. If the score is a new high score, the high score should
both be updated on the site, as well as saved in local storage on the users machine.

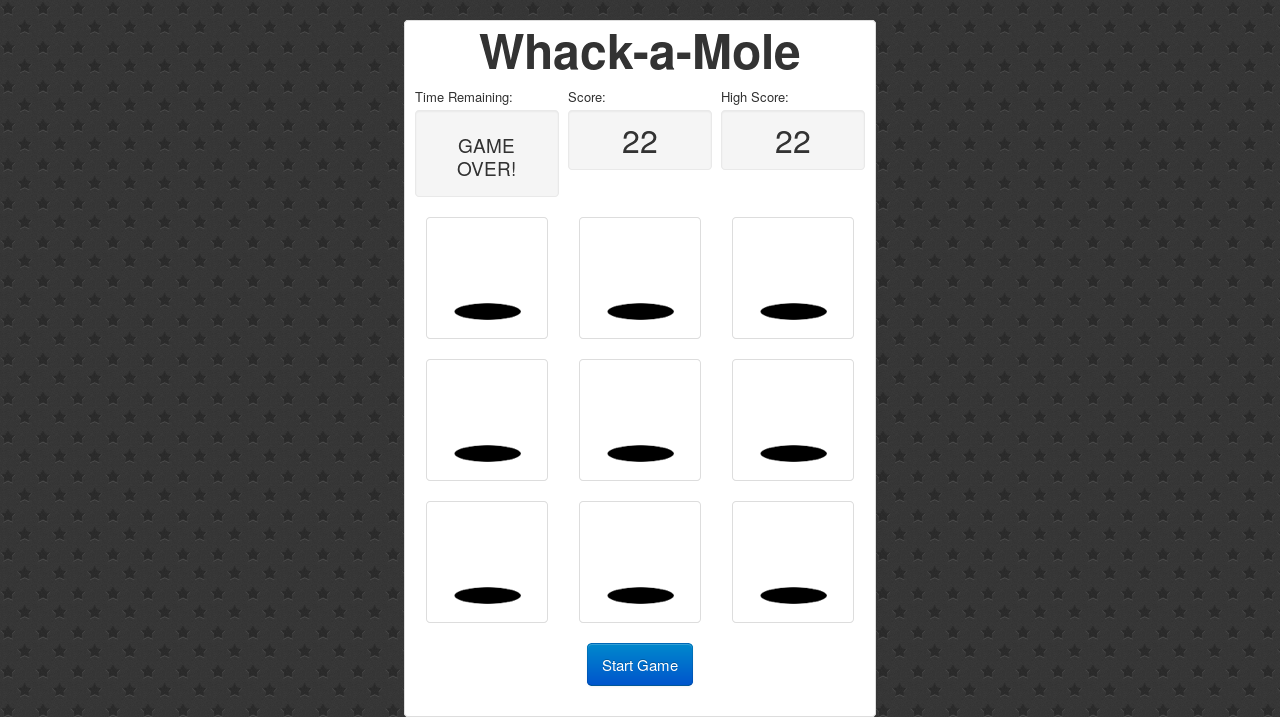

Whack-a-Mole Figure 5 — Whack-a-Mole once game is over
It at any point the game is over and the user clicks on a hole, he/she should be presented with a dialog
that informs that he\she needs to click "Start Game" to begin.

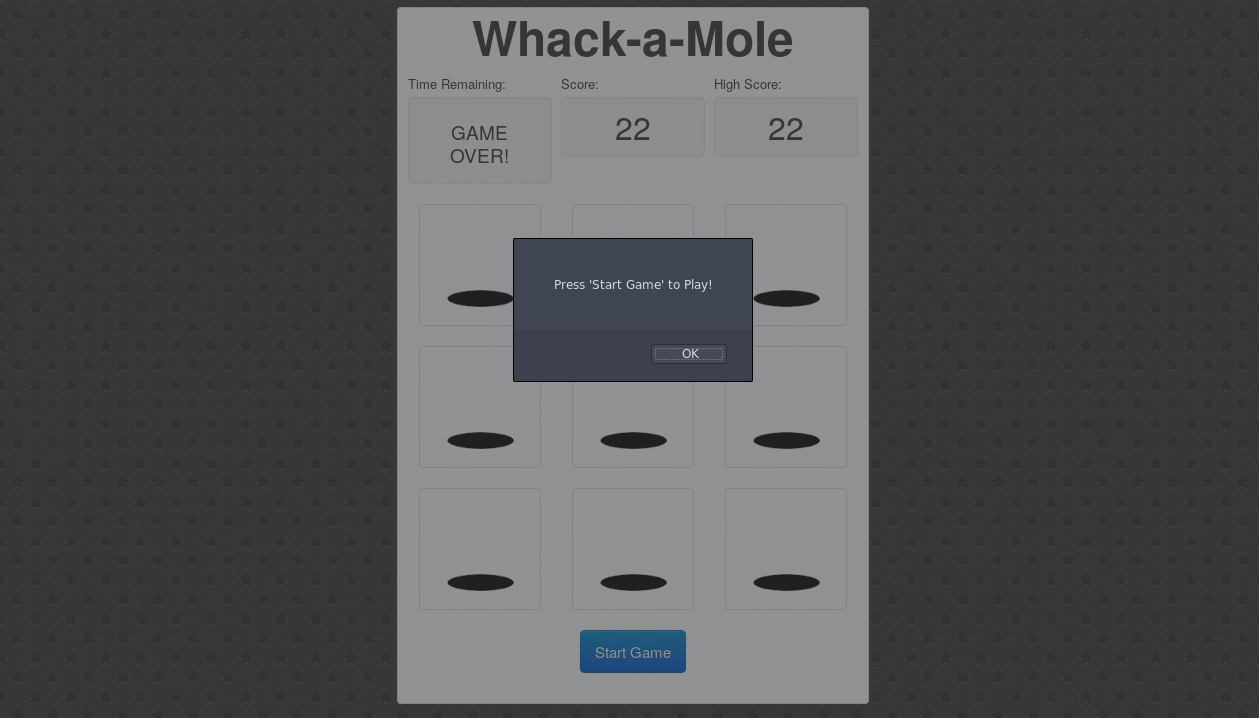

Whack-a-Mole Figure 6 — Whack-a-Mole whacking when game is over
Likewise, if the user is in the middle of a game and he/she clicks "Start Game" then he/she should
be presented with a dialog asking if the game should be aborted. If the user clicks yes, then the game should
restart. If the user clicks no, then the dialog should go away and the game should continue. This confirmation
should not be shown to the user if a game is not already in play.
Note that when the dialog is up, the game should be paused. If
the user clicks no, the game should pick back up with the clock
running from where it left off (no time should elapse while
dialog is up).

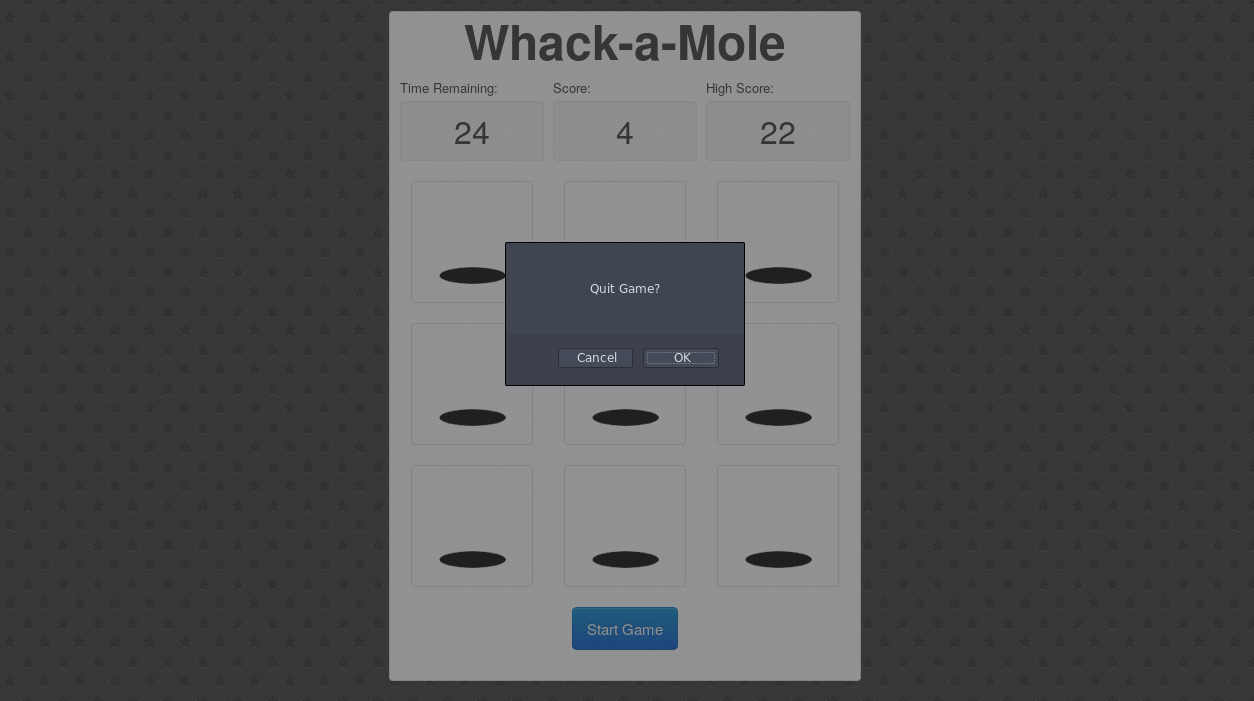

Whack-a-Mole Figure 7 — Whack-a-Mole when trying to start new game when already in play
Files
I have provided the following files for this problem:
index.html — this file contains the HTML for
the layout shown in the screen shots - this is where you will be
doing most of your work. You will add JavaScript event handlers
and JavaScript functions into this file. If you wish to
externalize the JavaScript in an external .js file
feel free to do so.
css/bootstrap.min.css — the Twitter bootstrap
stylesheet.
css/custom.css — CSS customizations for the
HTML page in this problem.
img/down.png — the "down" mole image.
img/up.png — the "up" mole image.
img/starring.png — background image used by the page.
img/touch-icon-*.png — various images used by
iOS if you add to your home screen.
These files will copied to your swe2018 directory as part of the setup script.
How you will be graded
The points for this problem will be assigned according to the following rubric
Requirement
Points
Total
35
The user is prompted to start a new game when clicking on a hole when a game hasn't started yet
1
The timer starts at 30 and the score is reset to 0 when clicking the start game button
3
Moles pop every second or so
5
Only one mole is displayed at a time
2
Clicking on a mole increments the score by exactly 1 point
3
The user can't get points for clicking on a space where the mole was previously up
3
The game ends after 30 seconds and moles cease popping up
5
The user is prompted to start over if start new game is clicking during a game
3
Clicking cancel on the above prompt returns you to the game in progress
2
Clicking OK immediately ends the current game and starts a new game
2
The high score is saved between runs and visits to the page
3
The high score is saved using the Local Storage API
3
2. Shoutbox (30 Points)
Update 04/23/18
The script as originally copied contained an outdated link. Please check your server/shout.php file and if the fourth line of the file is
For this assignment you will implement
a Shoutbox
client using AJAX and JSON.

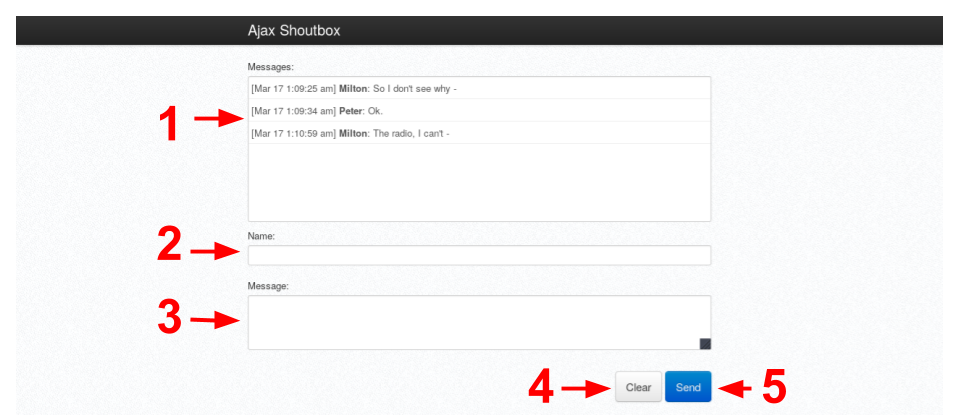

Shoutbox Figure 1 — Page components
The messages will consist of a div that is continuously updated with the latest messages.
The name text field is for the user to enter their name to be associated with the post.
The message textarea is for the user to enter their message.
The "Clear" button should remove all text from the message textarea and select focus on the textarea.
The "Send" button should post the message to the server.
Behavior
When the page initially loads it should look similar to as shown
below. Upon loading the page, an AJAX request should be sent to
the server requesting the latest messages. A JSON response is
returned from the server and should be parsed and the output
shown in the messages box. The last 10 messages are shown each
consisting of the time of the post, the name given and the
contents of the post. The newest
posts are at the bottom, with the oldest having scrolled off of
the top. The application should be setup to fetch and update
the messages at an interval of once every 15 seconds.
If the user had previously been to the page and their name had
been stored in local storage by the application, then it
should be displayed in the name text field. If no local storage has
been set, then the name field should be blank.
Shoutbox Figure 2 — Initial page load

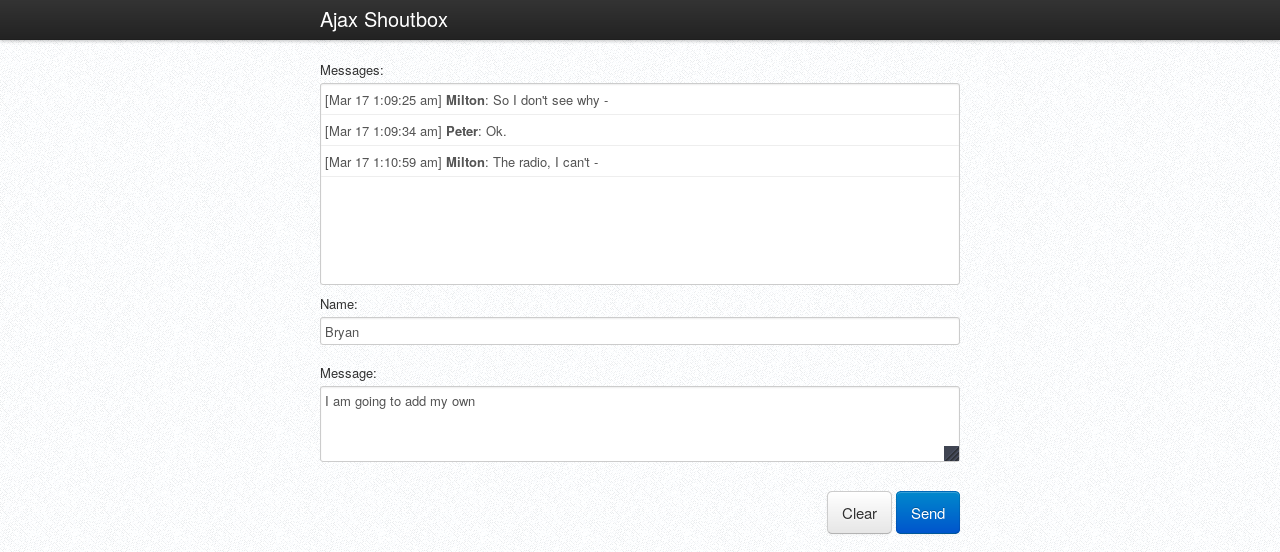

The user can enter their name and message as shown below. The
user has just finished tying in the messages text area, but has
not yet clicked "Send".
Shoutbox Figure 3 — Typing a message
When the user clicks "Send", the name and message should get
bundled up and an AJAX request should be posted (not a get, but
a post) to the server. The response from the server should
include the last 10 messages modified so that the submitted
message is the latest in the list.
Also, upon clicking the "Send" the messages area should be
cleared of all text and should also be given focus. So, after
sending the message, the user should be able to begin typing
without manually re-clicking on the message area. Additionally,
the typed name should be stored in local storage.

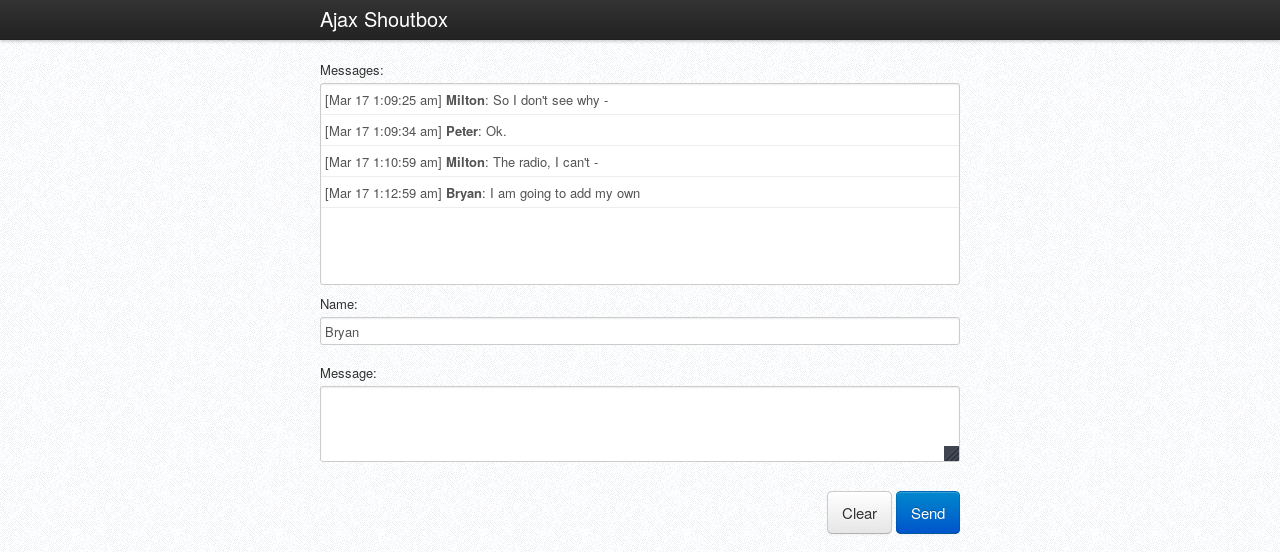

Shoutbox Figure 4 — The sent message
As the application continuously polls the server via AJAX
requests for updates, new messages are parsed and displayed to
the user. You can test this by using two browser tabs or windows.
If the user clicks the "Clear" button, all text in the message
area should be cleared and the message area should be given
focus (same behavior as "Send" but without posting the data).
The user should be able to close his/her browser and return to
the page at any point in time. Assuming the user had already
sent a message, the name field should be automatically populated
by retrieving the value set in local storage when a
message was sent.

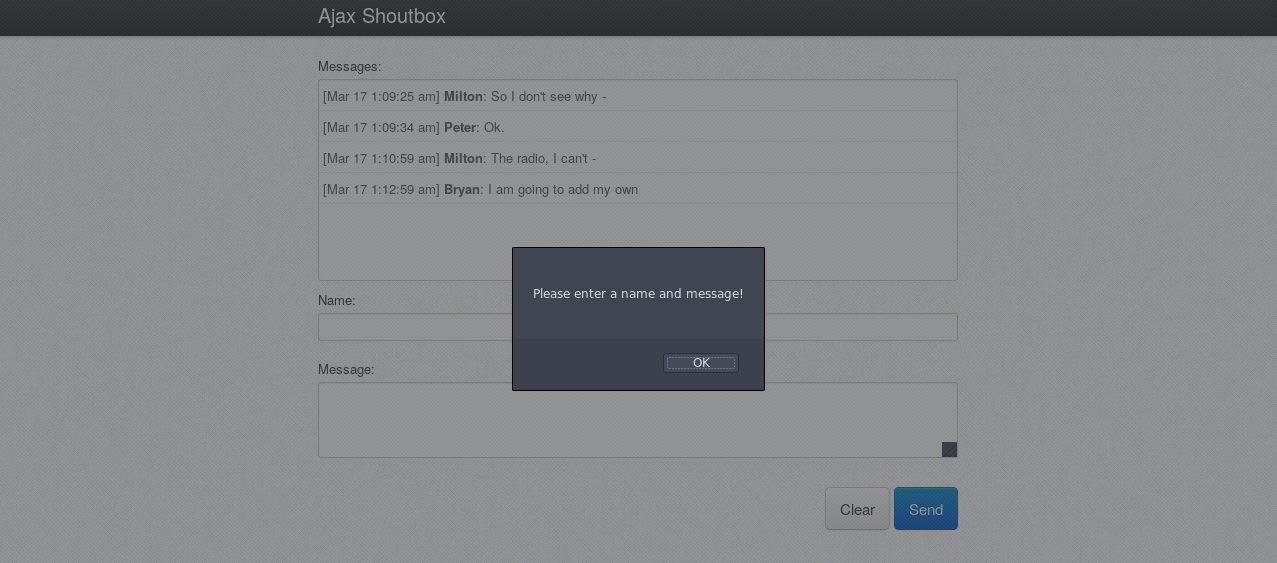

If the user attempts to send a message without having entered a
name or message then the user should be alerted their error
by way of an alert.
Shoutbox Figure 5 — Alerting the user of errors
Server-Side Script
For this problem you will use a script written for you on the
server-side. The location of this script that you will be
making AJAX requests to will be located at
http://swe.umbc.edu/~USERNAME/cs433/javascript/p2/server/shout.php.
This script behaves in 1 of 2 ways depending upon how you are
interacting with it.
If a get request is made to the script (no arguments
necessary) then it will return a JSON encoded response
containing the last 10 messages posted - the newest in the first
position, the oldest in the last position. The response is an
array of 10 objects. Each object in the array contains the
following 3 fields.
time - a timestamp (string) representing the time the message was received by the server.
name - the name (string) associated with the message
message - the actual message (string) submitted by the user
An example response for a get request is shown below (lines have
been wrapped for readability - they are not wrapped in the
actual response).
{"result":"success","data":[{"name":"Dom","message":"Yeah. It's just that we're putting new coversheets on all the TPS reports before now before they go out now. So I'd really appreciate it if you could just remember to do that. from now on. That'd be great.","time":"Mar 17 1:15:07 am"},{"name":"Peter","message":"Yeah. I got the memo. And I understand the policy. The problem is, I just forgot this time. And I've already taken care of it so it's not a problem anymore.","time":"Mar 17 1:14:54 am"},{"name":"Dom","message":"Yeah. Uh, did you get that memo?","time":"Mar 17 1:14:39 am"},{"name":"Peter","message":"Yeah. The coversheet. I know, I know. Uh, Bill talked to me about it.","time":"Mar 17 1:14:29 am"},{"name":"Dom","message":"Hello, Peter. What's happening? :-) We need to talk about your TPS reports.","time":"Mar 17 1:12:54 am"},{"name":"Milton","message":"I enjoy listening to the radio at a reasonable volume from nine to eleven. :-D","time":"Mar 17 1:11:19 am"},{"name":"Peter","message":"Yeah! All right!","time":"Mar 17 1:11:09 am"},{"name":"Milton","message":"The radio, I can't -","time":"Mar 17 1:10:59 am"},{"name":"Peter","message":"Ok. :-0","time":"Mar 17 1:09:34 am"},{"name":"Milton","message":"So I don't see why -","time":"Mar 17 1:09:25 am"}]}
If a post request is made to the script with
a name and message values provided
then it will go ahead and add your message to the list of latest
messages (removing the oldest from the list) and return the new
list of the last 10 messages - including your post.
An example response for a post specifying the name and message
(URL encoded) shown below:
Returns the following response (again wrapped here, not in actual response):
{"result":"success","data":[{"name":"Samir","message":"Oh no! Not again! Why does it say paper jam when there is no paper jam?!!","time":"Mar 17 11:39:55 pm"},{"name":"Dom","message":"Yeah. It's just that we're putting new coversheets on all the TPS reports before now before they go out now. So I'd really appreciate it if you could just remember to do that. from now on. That'd be great. >:-)","time":"Mar 17 11:39:35 pm"},{"name":"Peter","message":"Yeah. I got the memo. And I understand the policy. The problem is, I just forgot this time. And I've already taken care of it so it's not a problem anymore. :-)","time":"Mar 17 11:39:18 pm"},{"name":"Dom","message":"Yeah. Uh, did you get that memo? :-|","time":"Mar 17 11:38:40 pm"},{"name":"Peter","message":"Yeah. The coversheet. I know, I know. Uh, Bill talked to me about it. :-(","time":"Mar 17 11:38:16 pm"},{"name":"Dom","message":"Hello, Peter. What's happening? We need to talk about your TPS reports. :D","time":"Mar 17 11:37:54 pm"},{"name":"Milton","message":"I enjoy listening to the radio at a reasonable volume from nine to eleven.","time":"Mar 17 11:36:42 pm"},{"name":"Peter","message":"Yeah! All right! :-0","time":"Mar 17 11:36:24 pm"},{"name":"Milton","message":"The radio, I can't - :'(","time":"Mar 17 11:35:55 pm"},{"name":"Peter","message":"Ok. :-0","time":"Mar 17 11:35:37 pm"}]}
If a post is performed with either an empty name
or message then an error response (as documented
above) is returned.
Provided Files
index.html — this file contains the HTML
for the layout shown in the screen shots - this is where you
will be doing most of your work. You will add JavaScript
event handlers and JavaScript functions into this file. If
you wish to externalize the JavaScript in an
external .js file feel free to do so.
server/shout.php — the PHP script that you
will be using for this problem (and the necessary library).
So, when you create your Ajax request, it will be
against server/shout.php which refers to the one
in your directory.
css/bootstrap.min.css — the Twitter
bootstrap stylesheet.
css/custom.css — CSS customizations for the
HTML page in this problem.
img/white_texture.png — image used as the
background texture.
js/ — an empty directory (where I put my
externalized JavaScript files).
The resources for this problem will be copied to your SWE directory as part of the setup script
How you will be graded
The points for this problem will be assigned according to the following rubric
Each plot is worth 10 points
Requirement
Points
Total
30
The page performs a get request every 15 seconds
3
The message field is cleared when hitting submit
3
The clear button clears the message and gives the message box focus
5
Messages are not sent if the name field is empty
3
The name field is saved between visits to the page
3
The name field is stored using local storage
3
The message is sent to the server using POST
2
The message is put into the display as soon as it is submitted
3
The response to the GET request is parsed and displayed correctly
5
3. Maps + Wikipedia Mashup (35 points)
Task
For this assignment you will implement
a open street maps (using leaflet.js) and wikipedia mashup
using JavaScript. You are to implement the geographic display
of landmarks in wikipedia by making an AJAX request to a provided server side
component (which is making a request to Wikipedia on your behalf)
and display the results of the JSON response on the map provided
by leaflet.js.

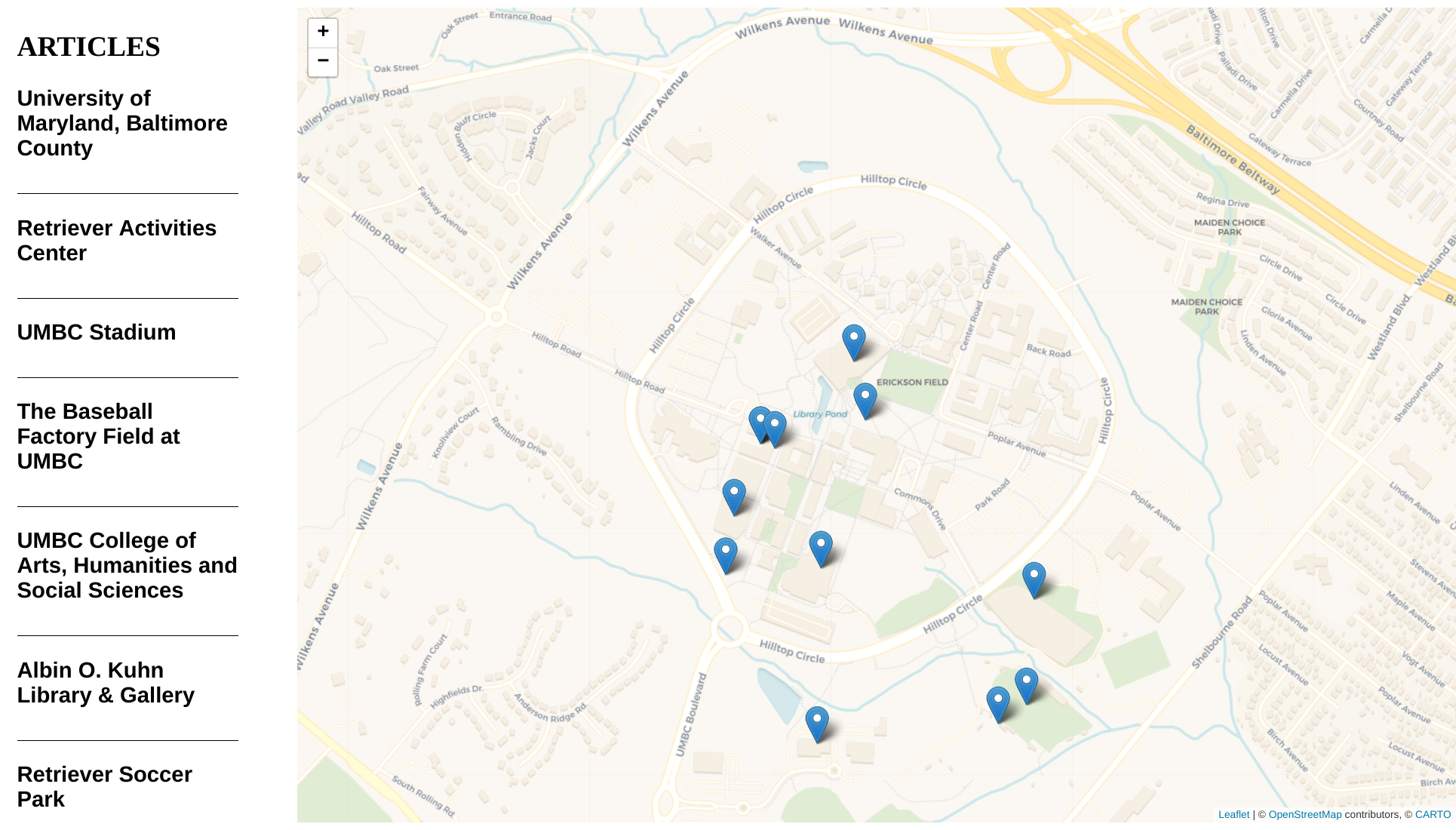

Maps Figure 1 — Initial View
Behavoir
When the page initially loads it should look similar to the map as shown below.
The map should be loaded and focused with some
default view. I've focused on UMBC — you are welcome to focus on whatever region you like.
Take note that when the page is
loaded, an Ajax request should be initiated for the default user and any landmarks
within the view of the current map will be returned and should be displayed as markers.
Your initial
view should have some markers present, so choose your viewing location appropriately.
Upon clicking a marker, it should open a bubble with the name of the landmark, and a photo if one is provided. The name should link tothe Wikipedia article, opening in another tab or browser window.

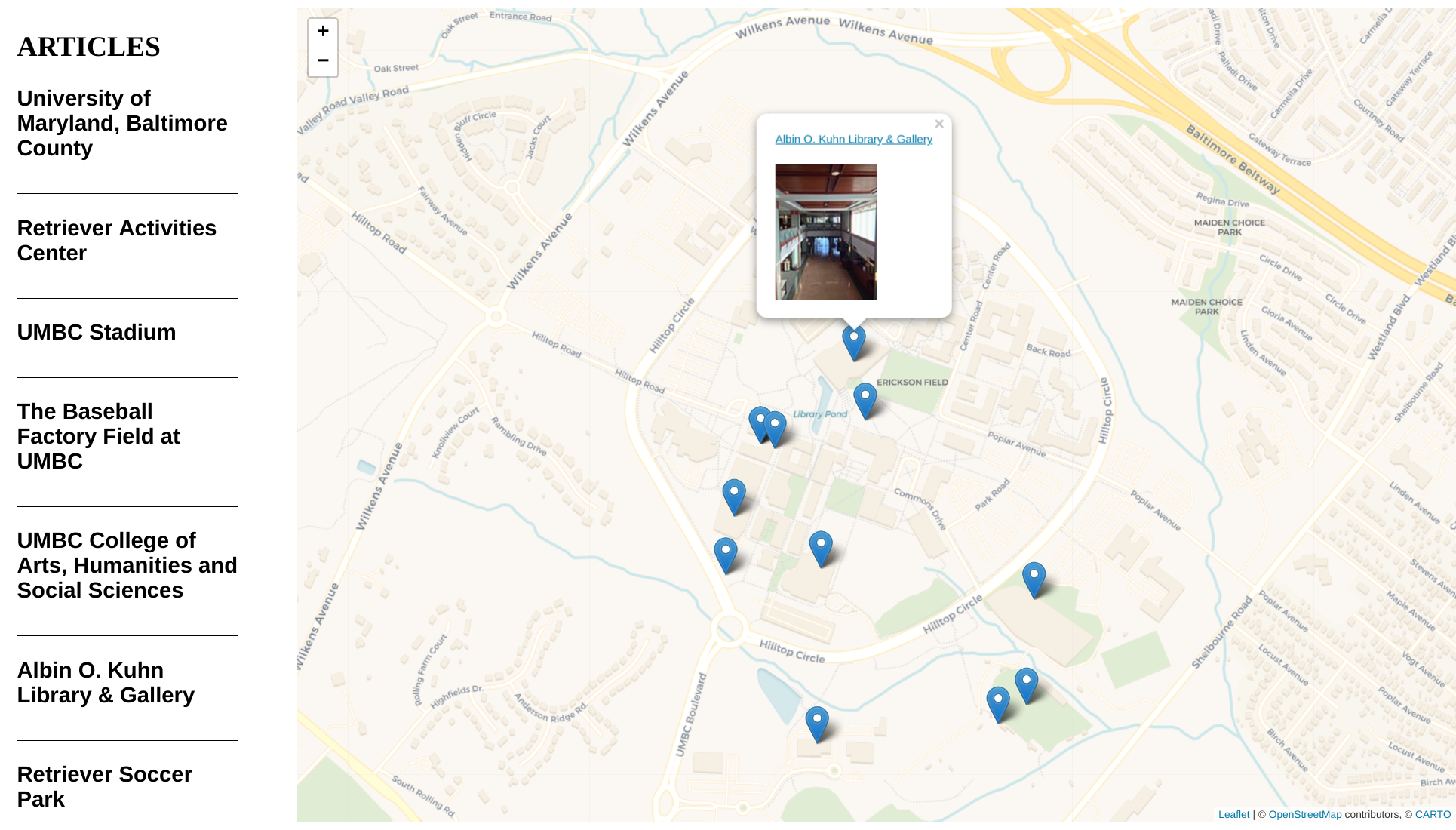

Maps Figure 2 — Info bubble
Additionally, if the map is panned or zoomed (either by grab and
drag or via the navigation controls) the map will have new
extents, and a new Ajax request should be made with the new
edges of the map. All markers should again be cleared and
replaced with the result based on the new map.

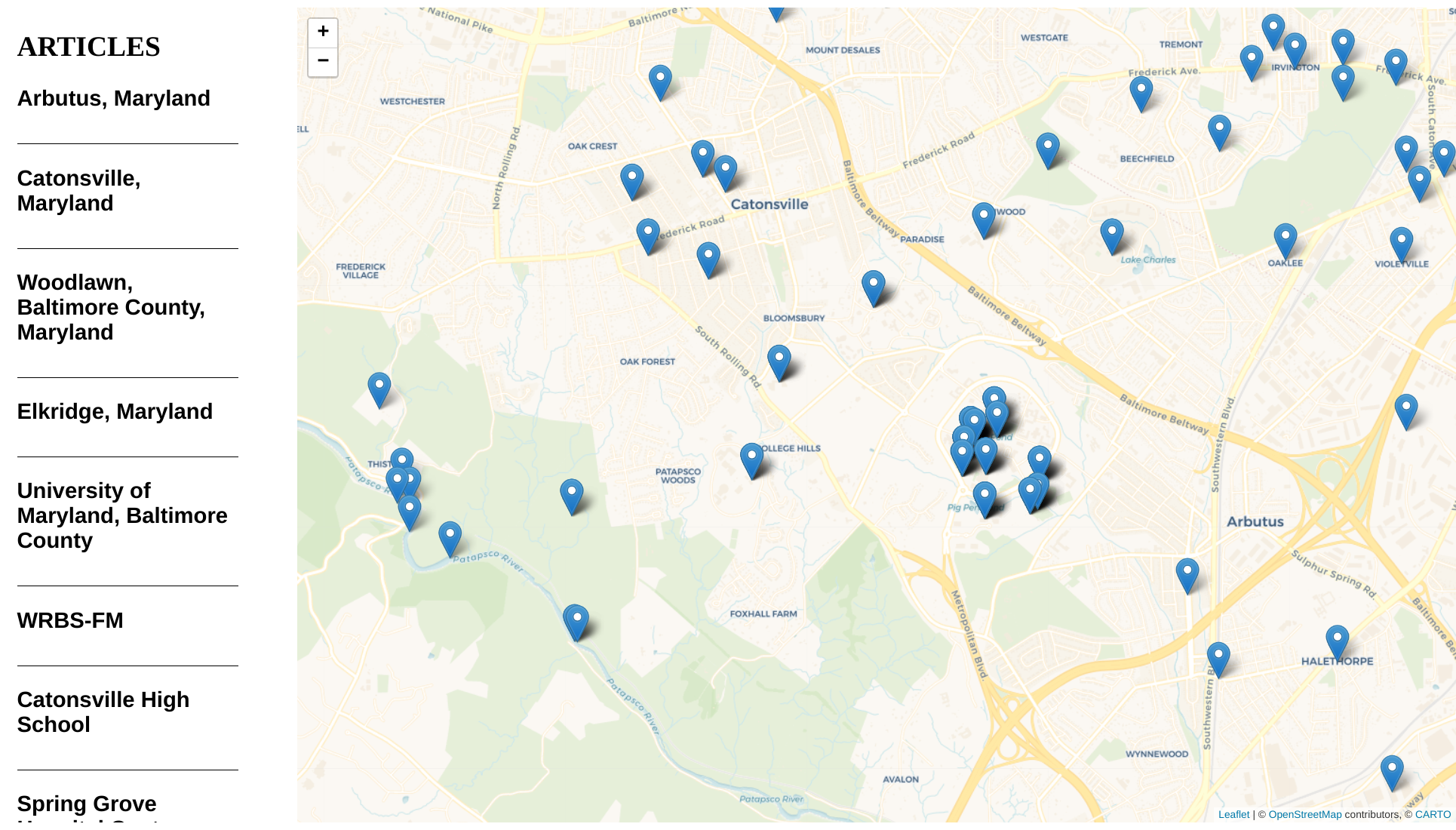

Maps Figure 3 — Panning
The left sidebar should list all landmarks currently in view. Clicking on a landmark title in the sidebar should display the start of the wikipedia article as well as a link to the main article. NOTE: Not every landmark will have an excerpt from their article, and this should be handled gracefully. Only one article excerpt should be visible at a time, so if another one is clicked, the previously open one should close. This sidebar should scroll, and be the same height as the map (should be this way if you don't touch the CSS in the provided files.

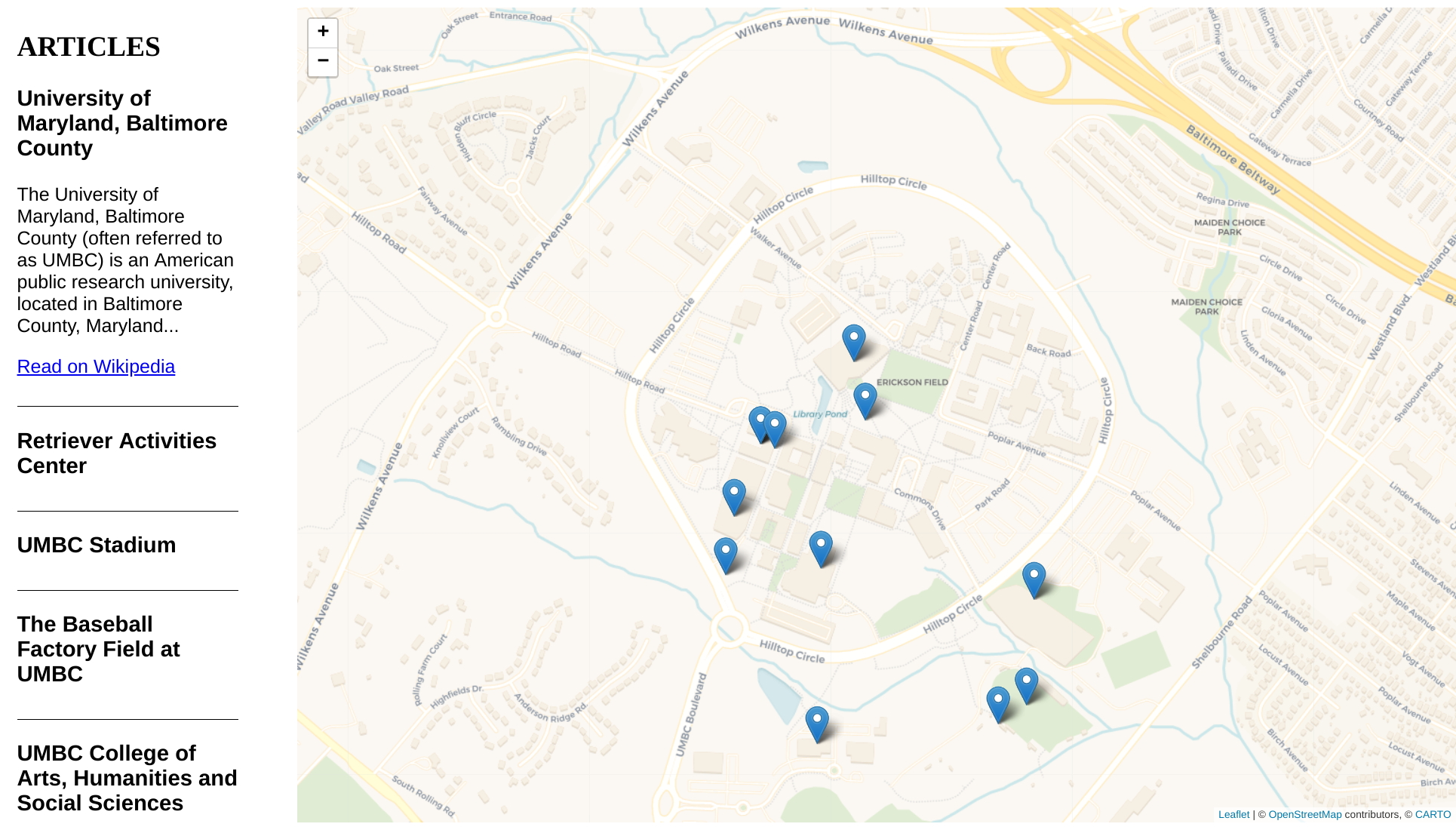

Maps Figure 4 — Sidebar Use
Server-Side Script
A server side script called wiki.php has been provided for this problem.
This script takes the following arguments, all of which are required:
lat
long
rad
This script is actually just proxying on your behalf, feeding your requests to the Wikipedia API. Lat refers to the latitude at the center of your map, long refers to the longitude at the center of your map, and rad refers to the radius. You must comput the radius yourself using the bounds of the map and the distance function in leaflet.js
The response is a plain text JSON encoded response in the format given by Wikipedia. You should be able to determine which parts you need by looking at a response.
A response from a request of the script provided can be obtained by going directly to the wiki.php script like so:
http://swe.umbc.edu/~USERNAME/cs433/javascript/p3/server/wiki.php?lat=39.25560152079427&long=-76.71099543571474&rad=752 . Note that a number of characters have been URL encoded.
Again in your JavaScript, you will be pointing to your version out of your directory.
Provided Files
index.html — this file contains the HTML
for the layout shown in the screen shots — this is where
you will be doing most of your work. You will add JavaScript
event handlers and JavaScript functions into this file. If
you wish to externalize the JavaScript in an
external .js file feel free to do so.
server/wiki.php — the PHP script that you
will be using for this problem. So, when you create your Ajax
request, it will be against server/wiki.php which
refers to the one in your directory.
js/ — an empty directory (where I put my
externalized JavaScript files).
These resources will be copied to your directory as part of the setup script
How you will be graded
The points for this problem will be assigned according to the following rubric
Requirement
Points
Total
35
A map is displayed when the page is loaded
3
There are markers present on the map when the page loads
3
The marker pop-up has the name of the landmark when clicked
3
The marker pop-up has the Wikipedia link when cliked
3
The marker pop-up has the image of the landmark if one is present in the data
3
Zooming causes new markers to appear
4
Panning causes new markers to appear
4
Old markers are deleted on panning and/or zooming
3
The list of landmarks is populated in the left side of the page
3
The start of the wikipedia article is displayed when clicking on a landmark on the left sidebar
3
Previously openend articles in the sidebar are closed when a new one is opened
3
Submisson
For this assignment you will not need to use GitHub. Rather, since the setup script
gave me the necessary permissions in your assignment directories
I will archive what I need at midnight.
After the due date you should under no circumstances edit the files
under your javascript directory. When grading, the files
sitting in your directory will be diff'd against the version I archived.
Any files that were detected as changed will be treated as late and that
problem will not be graded. If you wish to continue to work on these
files, please copy them off somewhere else (under the directories created for you where it is still locked down) and work on
the copies there. Again, do not change anything under the
javascript directory — doing so will result in
significant point loss.
