In assembly language, both arguments have to be the same size, even when multipling or dividing (sort of!) Also, when planning, we must consider the worst case as the only case, because the best case will work within the worst case.
So we multiple 8 bits time 8 bits or 16 bits times 16 bits or 32 bits times 32 bits. In assembly language that is the size of the containers. We do not care about the value, just does it fit in the container. When we put a one into a 32 bit container then we are choosing to do a 32 bit multiple. The rule for multiplication is that when multiplying two n-bit containers, the size of the answer 2n. (Since division is the inverse of multiplication, 2n divided by n, the answer is n.)
Multiplication is truly a shortcut for addition, while division is a shortcut for subtraction. Four times three is equal to four plus four plus four. Division is 1) twelve minus four 2) eight minus four and 3) four minus four. Forunately, the hardware designers now let us do it with a single instruction.
However, it is still a little more complex than before. First of all, it takes longer. There is also the problem with the size of numbers (even more so than addition and subtraction!) 99 times 99 is 9801. A byte times a byte can result in a word! Multiplying two n-digit numbers will probably result in a 2n-digit number. Division goes the other direction, but is even more difficult because we have to keep track of the remainder. Then comes the wrinkle of signs!
So when you multiply two sixteen bit numbers, expect the answer to require more bits! The 80x86 CPU requires special registers for this:
| Operand Size | Multi- plicand | Multiplier | Product |
|---|---|---|---|
| BYTE | AL | Reg or Memory | AX |
| WORD | AX | Reg or Memory Reg, immed Reg, Reg, immed | AX (low) and DX (high) |
| DWORD | EAX | Reg or memory Reg, immed Reg, Reg, immed | EAX (low) and EDX (high) |
Where did this come from???? Well, it starts only with the 386 and works in the 16- or 32-bit mode on signed values only. It is a messy attempt to enhance things. Because of the nature of this mess, it is better not to use it (my opinion!)

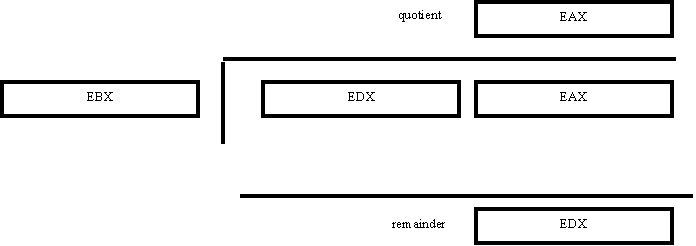

Division is similar (except that it does not allow a constant!):
| Operand Size | Dividend | Divisor | Quotient | Remainder |
|---|---|---|---|---|
| BYTE | AX | Reg or Memory | AL | AH |
| WORD | AX and DX | Reg or Memory | AX | DX |
You can not use a constant operand with (sometimes )multiplication or (always) division. Use the mov instruction to put a constant into the appropriate register when needed.
Did I mention something about the sign? There are different instructions based on whether or not it is a signed or unsigned operation. That leads us to the following:
| Instruction | Description |
|---|---|
| mul | unsigned multiplication |
| div | unsigned division |
| imul | signed multiplication |
| idiv | signed division |
cwd ; convert the signed word in ax to a double word
; in ax and dx
cbw ; convert the signed byte in al to a word in ax
cdq ; convert the signed double word in eax to a quad word
; (eight bytes) in edx, eax (higher order is in edx
; ax is unchanged
cwde ; convert the signed word in ax to a double word
; in eax
To calculate the miles per gallon, you must, divide the number of miles driven by number of gallons of gas used. We must analyze the data to make sure we code it correctly. First, what kind of numbers are we talking about?
They are integers (because you don't know how to do floating point yet!) It is impossible to drive -100 miles and add -20 gallons of gas, so we have unsigned values. It is probable that the number of miles driven exceeds 256 miles and we will assume that it will not exceed 65,535 miles. That means the numbers can not fit into one byte and will not exceed two bytes.
When we use C to code this problem, we get something like:
short miles; short gallons; short mpg; mpg = miles / gallons;Assembly language requires the programmer to do the dirty work! First of all, we must get the operands into the correct size. The quotient must be 32 bits and the divisor must be 16 bits. When we are done, we will have a 16 bit number.
mov ax, word [miles] cwd ;ax is assumed idiv word [gallons] ;ax is assumed mov word [mpg], ax
section .data
miles8 db 250
gal8 db 12
miles16 dw 328
gal16 dw 15
miles32 dd 328
gal32 dd 15
msg db 'answer is = %d', 10, 0
section .bss
mpg8 resb 1
mpg16 resw 1
mpg32 resq 1
section .text
global main
extern printf
;; just like main in C -- if linking with gcc, must be main, otherwise does not have to.
main: ;tell linker entry point
;; 8-bit division
mov eax, 0 ; clear high 8-bits of 16-bit value
mov al, [miles8] ; 8-bit to 8-bit
div byte [gal8] ; NOTE: remainder in ah
mov byte [mpg8], al ; save answer
; output results ;;should be a function
mov eax, 0 ; make sure no garbage in high order bits
mov al, byte [mpg8] ; get answer
; set up printf
push eax ; set up value -- 4 bytes on stack
push dword msg ; set up print specification -- 4 more
call printf
add esp, 8 ; take off what you put on the stack!!
;; 16-bit division
mov eax, 0
mov edx, 0 ; make sure to clear the high order!
mov ax, [miles16]
div word [gal16]
mov word [mpg16], ax
; output results ;;should be a function
mov eax, 0 ; make sure no garbage in high order bits
mov ax, word [mpg16] ; get answer
; set up printf
push eax ; set up value -- 4 bytes on stack
push dword msg ; set up print specification -- 4 more
call printf
add esp, 8 ; take off what you put on the stack!!
;; 32-bit division
mov eax, 0
mov edx, 0 ; make sure to clear the high order!
mov eax, [miles32]
mov ebx, dword [gal32]
div ebx ; use a register this time, instead of memory
mov dword [mpg32], eax
; output results ;;should be a function
mov eax, dword [mpg32] ; get answer -- same as 16-bit, not necessary here
; set up printf
push eax ; set up value -- 4 bytes on stack
push dword msg ; set up print specification -- 4 more
call printf
add esp, 8 ; take off what you put on the stack!!
;; The final part of the program must be a call to the operating system to exit
;; the program.
mov ebx,0 ;successful termination of program
mov eax,1 ;system call number (sys_exit)
int 0x80 ;call kernel
;; Notice the file just ends.
To find out how many weeks and days are in a period of days, we could use unsigned bytes and we have two math operations to perform, unsigned division and modulus!
weeks = nrDays / 7; days = nrDays % 7;Interestingly, we only have to do division here, because the remainder is always calculated at the same time, so we just have to save it:
mov al, [nrDays]
sub ah, ah ;don't sign extend because that
; could change the value, just
; clear out the high part!
mov bl, 7
div bl ;can't use a constant here!
mov [weeks], al
mov [days], ah ;the remainder is the portion
; of a week
Now an example of multiplication.
; ; One more example, this time with multiplication of a unsigned number ; mov ax, 24 ; there are 24 hours in a day mov bx, 7 ; How many hours in a week? mul bx ; Calculate the answer push eax push string3 call printf
